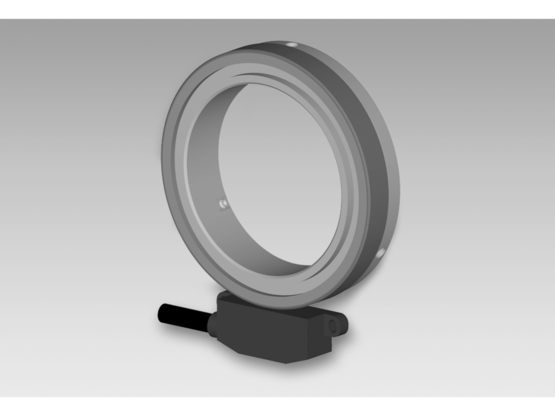

Baumer ITD69H02 - Sine signal
Encoders without bearings - incremental
- Bearingless magnetic encoder
- 128 sinewave cycles per revolution
- Output circuit: Sine 1 Vpp
- Fast, easy and space saving installation
- Maintenance-free
- High accuracy - error max. ±0.2 °
- Rotation speed max. 6000 rpm
- High resistance to dirt and vibrations
| Voltage supply: | 5 VDC ±10 % |
|---|---|
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| System accuracy: | ±0.2° |
| Output frequency: | ≤180 kHz (-3 dB) |
| Output stages: | SinCos 1 Vpp |
| Output signals: | A+, A-, B+, B- A+, A-, B+, B-, N+, N- |
| Sinewave cycles per revolution: | 128 |
| Consumption w/o load: | ≤50 mA |
| Short-circuit proof: | Yes |
| Reverse polarity protection: | Yes |
| Operating temperature: | -40...+100 °C (fixed cable) |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms |
| Weight approx.: | 390 g |
| Connection: | Cable 1 m |
| Material: | Housing: plastic Shaft: stainless steel |
| Axial offset: | ±0,5 mm |
| Working distance: | 0,2 … 0,5 mm (radial), optimal 0,3 mm |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 67 (relating to sealed electronics) |
| Dimensions W x H x L: | 12 x 16 x 48 mm |
| Shaft type: | ø40...68 mm (through hollow shaft) |
| Admitted cable length: | 15 m |
