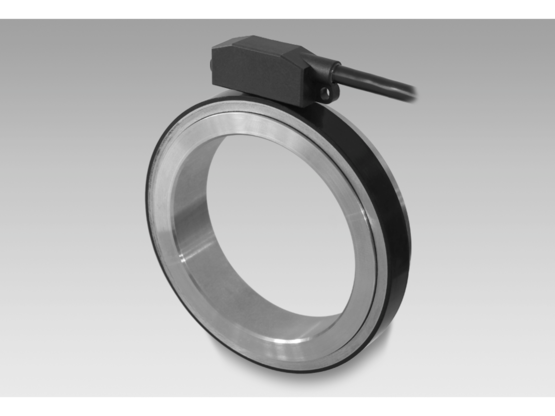

Baumer ITD89H00 - Rectangular signal
Encoders without bearings - incremental
- Bearingless magnetic encoder
- Max. 8192 pulses per revolution
- Output circuits: HTL or TTL
- Fast, easy and space saving installation
- Maintenance-free
- High accuracy - error max. ±0.1°
- Rotation speed max. 5000 rpm
- High resistance to dirt and vibrations
| Voltage supply: | 5 VDC ±5 % 8...26 VDC |
|---|---|
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| System accuracy: | ±0.1° |
| Output frequency: | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Output current: | ≤30 mA |
| Output stages: | TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof) |
| Output signals: | A 90° B + inverted A 90° B, N + inverted |
| Reverse polarity protection: | Yes |
| Short-circuit proof: | Yes |
| Consumption w/o load: | ≤50 mA |
| Pulses per revolution: | 256 … 8192 |
| Interpolation: | 1‑fold (single) 2‑fold 4‑fold 8‑fold 16‑fold 32‑fold |
| Connection: | Cable 1 m |
|---|---|
| Weight approx.: | 2200 g (at ø70 mm) 619 g (at ø140 mm) |
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms |
| Operating temperature: | -40...+100 °C (fixed cable) |
| Material: | Housing: plastic Shaft: stainless steel |
| Operating speed: | ≤5000 rpm |
| Protection DIN EN 60529: | IP 67 (relating to sealed electronics) |
| Motor shaft tolerance: | ±0,5 mm axial ±0,05 mm radial |
| Dimensions W x H x L: | 12 x 16 x 48 mm |
| Shaft type: | ø70...140 mm (through hollow shaft) |
| Admitted cable length: | 15 m |
