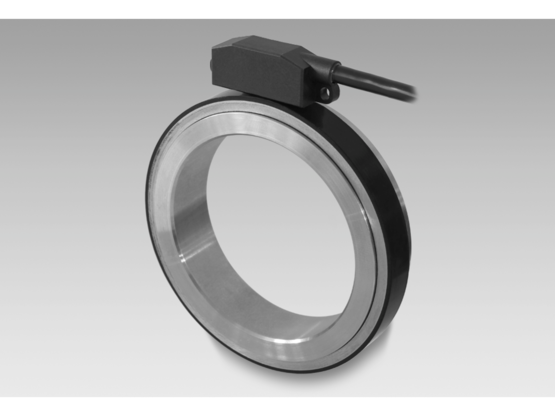

Baumer ITD89H00 - Sine signal

Baumer ITD89H00 - Sine signal

Encoders without bearings - incremental

  • Bearingless magnetic encoder
  • 256 sinewave cycles per revolution
  • Output circuit: Sine 1 Vpp
  • Fast, easy and space saving installation
  • Maintenance-free
  • High accuracy - error max. ±0.1°
  • Rotation speed max. 5000 rpm
  • High resistance to dirt and vibrations
Voltage supply: 5 VDC ±10 %
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
System accuracy: ±0.1°
Output frequency: ≤180 kHz (-3 dB)
Output stages: SinCos 1 Vpp
Output signals: A+, A-, B+, B- A+, A-, B+, B-, N+, N-
Sinewave cycles per revolution: 256
Consumption w/o load: ≤50 mA
Short-circuit proof: Yes
Reverse polarity protection: Yes
Operating temperature: -40...+100 °C (fixed cable)
Resistance: DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms
Weight approx.: 2200 g (at ø70 mm) 619 g (at ø140 mm)
Connection: Cable 1 m
Material: Housing: plastic Shaft: stainless steel
Operating speed: ≤5000 rpm
Protection DIN EN 60529: IP 67 (relating to sealed electronics)
Motor shaft tolerance: ±0,5  mm axial ±0,05  mm radial
Dimensions W x H x L: 12 x 16 x 48 mm
Shaft type: ø70...140 mm (through hollow shaft)
Admitted cable length: 15 m
