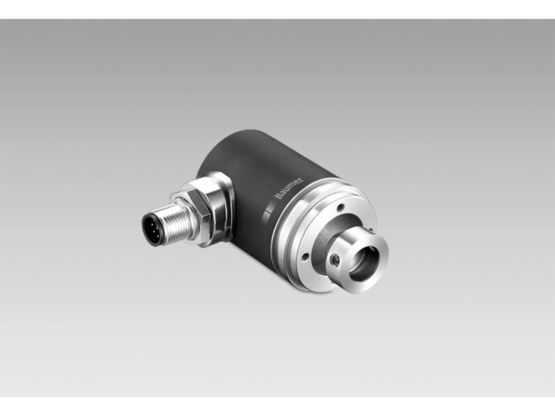

Baumer MAGRES EAM360R-K - CANopen®/SAE J1939
Absolute encoders
- Encoder kit single- or multiturn / CANopen®/SAE J1939
- E1 compliant design
- High protection IP 67
- High resistance to shock and vibrations
- Protection against corrosion CX (C5-M)
- Wire cross section 0.5 mm²
- Electronic gear function
- Applicable up to PLd (ISO 13849)
| Voltage supply: | 10...30 VDC |
|---|---|
| MTTFd (ISO 13849): | High (>100 years) Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately). |
| Emitted interference: | DIN EN 61000-6-4 CISPR 25:2008 (30...1000 MHz) ISO 7637-2:2004* * Severity level according to ECE R10 (Rev. 4) |
| Interference immunity: | DIN EN 61000-6-2 ISO 11452-2:2004* / -5:2002* ISO 7637-2:2004* ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV) * Severity level according to ECE R10 (Rev. 4) |
| Output stages: | CAN-Bus, LV (3.3 V) compatible ISO 11898 |
| Code sequence: | CW: ascending values with clockwise sense of rotation; looking at flange |
| Sensing method: | Magnetic |
| Absolute accuracy: | ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) (see info working distance) |
| Number of revolutions: | ≤262144 / 18 bit |
| Consumption typ.: | 20 mA (24 VDC, w/o load) |
| Initializing time: | ≤170 ms after power on |
| Interface: | CANopen® SAE J1939 |
| Function: | Multiturn Singleturn |
| Profile conformity: | CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406 |
| Steps per revolution: | ≤16384 / 14 bit |
| Weight approx.: | 170 g |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10...2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms |
| Relative humidity: | 95 % |
| Operating temperature: | -40...+85 °C (see general information) |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Material: | Housing: steel, powder-coated Flange: aluminium |
| Working distance: | 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 67 |
| Shaft type: | ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore) |
| Size (flange): | ø36 mm |
| Connection: | Flange connector M12, 5-pin Cable 2 m |
