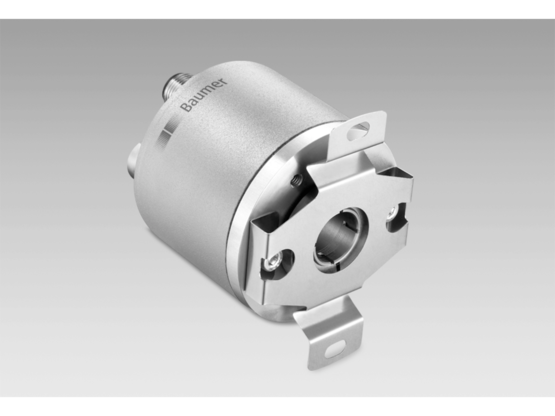

Baumer MAGRES EAM580-B - EtherNet/IP
Absolute encoders
- Encoder multiturn / EtherNet/IP
- Precise magnetic sensing
- Resolution max. 30 bit (14 bit ST, 16 bit MT)
- Angular accuracy up to ±0.15°
- High protection up to IP 67
- High resistance to shock and vibrations
- LED status display
| Voltage supply: | 10...30 VDC |
|---|---|
| Status indicator: | 4x LED integrated in housing |
| Emitted interference: | DIN EN 61000-6-4 |
| Interference immunity: | DIN EN 61000-6-2 |
| Sensing method: | Magnetic |
| Absolute accuracy: | ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) |
| Number of revolutions: | ≤65536 / 16 bit |
| Steps per revolution: | ≤16384 / 14 bit |
| Function: | Multiturn |
| Interface: | EtherNet/IP |
| Initializing time: | ≤10 s after power on |
| Consumption typ.: | 90 mA (24 VDC, w/o load) |
| Operating temperature: | -40...+85 °C (see general information) |
|---|---|
| Relative humidity: | 95 % |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10...2000 Hz DIN EN 60068-2-27 Shock 250 g, 6 ms |
| Weight approx.: | 360 g |
| Material: | Housing: steel zinc-coated Flange: aluminium Hollow shaft: stainless steel |
| Moment of inertia: | 46,75 gcm² |
| Starting torque: | ≤2 Ncm (+20 °C, IP 65) ≤2,5 Ncm (+20 °C, IP 67) |
| Operating speed: | ≤6000 rpm |
| Protection DIN EN 60529: | IP 65 (without shaft seal) IP 67 (with shaft seal) |
| Shaft type: | ø10...15 mm (blind hollow shaft) |
| Size (flange): | ø58 mm |
| Connection: | Flange connector 3 x M12 |
3D CAD - EAM580: Blind hollow shaft ø14 mm, EtherNet axial, with stator coupling, IP65/IP67
- ZIP
- 280.81 KB
3D CAD - EAM580: Blind hollow shaft ø14 mm, EtherNet axial, without stator coupling, IP65/IP67
- ZIP
- 221.42 KB
3D CAD - EAM580: Blind hollow shaft ø14 mm, EtherNet axial, pin torque support, IP65/IP67
- ZIP
- 225.02 KB
3D CAD - EAM580: Blind hollow shaft ø15 mm, EtherNet axial, with stator coupling, IP65/IP67
- ZIP
- 280.81 KB
3D CAD - EAM580: Blind hollow shaft ø15 mm, EtherNet axial, without stator coupling, IP65/IP67
- ZIP
- 221.43 KB
3D CAD - EAM580: Blind hollow shaft ø15 mm, EtherNet axial, pin torque support, IP65/IP67
- ZIP
- 226.98 KB
3D CAD - EAM580: Blind hollow shaft ø12 mm, Ethernet axial, pin torque support, IP65/IP67
- ZIP
- 226.32 KB
3D CAD - EAM580: Blind hollow shaft ø12 mm, EtherNet axial, without stator coupling, IP65/IP67
- ZIP
- 220.89 KB
3D CAD - EAM580: Blind hollow shaft ø12 mm, EtherNet axial, with stator coupling, IP65/IP67
- ZIP
- 283.23 KB
