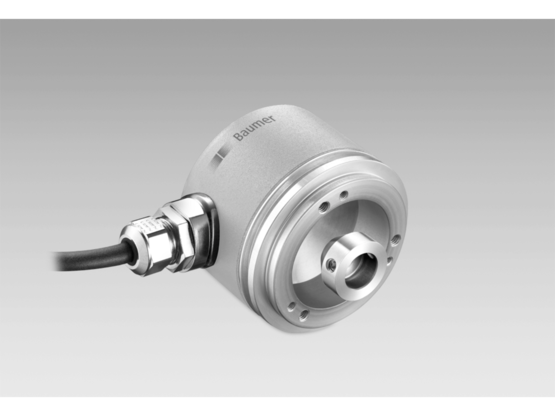

Baumer MAGRES  EAM580-K - CANopen®

Baumer MAGRES EAM580-K - CANopen®

Absolute encoders

  • Encoder kit single- or multiturn / CANopen®
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection up to IP 67
  • High resistance to shock and vibrations
  • Electronic gear function
Voltage supply: 10...30 VDC
Emitted interference: DIN EN 61000-6-4
Interference immunity: DIN EN 61000-6-2
Output frequency: ≤350 kHz
Output signals: A+, A-, B+, B-
Incremental output: 1024, 2048, 4096 ppr (other on request)
Output stages: CAN-Bus, LV (3.3 V) compatible ISO 11898 Incremental: linedriver RS422 or push-pull (option)
Code sequence: CW: ascending values with clockwise sense of rotation; looking at flange
Sensing method: Magnetic
Absolute accuracy: ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) (see info working distance)
Number of revolutions: ≤262144 / 18 bit
Consumption typ.: 20 mA (24 VDC, w/o load)
Initializing time: ≤170 ms after power on
Data currency: <1 ms
Interface: CANopen® CANopen®-Lift CANopen® + incremental
Function: Multiturn Singleturn
Profile conformity: CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406, DS 417
Steps per revolution: ≤16384 / 14 bit
Weight approx.: 250 g
Resistance: DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms
Relative humidity: 95 %
Operating temperature: -40...+85 °C (see general information)
Material: Housing: steel zinc-coated Flange: aluminium
Working distance: 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity
Operating speed: ≤6000 rpm
Protection DIN EN 60529: IP 67
Shaft type: ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)
Size (flange): ø58 mm
Connection: Flange connector M12, 5-pin Flange connector M12, 8-pin Cable 2 m
