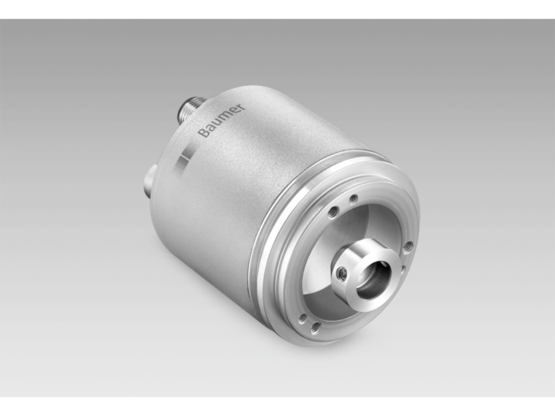

Baumer MAGRES  EAM580-K - PROFINET

Baumer MAGRES EAM580-K - PROFINET

Absolute encoders

  • Encoder kit multiturn / PROFINET IO
  • Precise magnetic sensing
  • Resolution max. 30 bit (14 bit ST, 16 bit MT)
  • Angular accuracy up to ±0.15°
  • High protection up to IP 67
  • High resistance to shock and vibrations
  • LED status display
Voltage supply: 10...30 VDC
Status indicator: 4x LED integrated in housing
Emitted interference: DIN EN 61000-6-4
Interference immunity: DIN EN 61000-6-2
Sensing method: Magnetic
Absolute accuracy: ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) (see info working distance)
Number of revolutions: ≤65536 / 16 bit
Steps per revolution: ≤16384 / 14 bit
Function: Multiturn
Interface: PROFINET IO
Initializing time: ≤10 s after power on
Consumption typ.: 90 mA (24 VDC, w/o load)
Operating temperature: -40...+85 °C (see general information)
Relative humidity: 95 %
Resistance: DIN EN 60068-2-6 Vibration 30 g, 10...2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms
Weight approx.: 250 g
Material: Housing: steel zinc-coated Flange: aluminium
Working distance: 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity
Operating speed: ≤6000 rpm
Protection DIN EN 60529: IP 67
Shaft type: ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)
Size (flange): ø58 mm
Connection: Flange connector 3 x M12

Data sheet - Data sheet – EAM580-K - PROFINET

  • PDF
  • 1017.11 KB
Download

Manual - EAL580, EAM580 - PROFINET / V1.2.0.0 and later

  • PDF
  • 3.86 MB
Download

Manual - EAL580, EAM580 - PROFINET / V1.2.0.0 and later

  • PDF
  • 4.43 MB
Download

3D CAD - EAM580: Kit ø12 mm, EtherNet axial, synchro flange, IP67

  • ZIP
  • 141.31 KB
Download

3D CAD - EAM580: Kit ø8 mm, EtherNet axial, synchro flange, IP67

  • ZIP
  • 140.81 KB
Download

3D CAD - EAM580: Kit ø6 mm, EtherNet axial, synchro flange, IP67

  • ZIP
  • 140.74 KB
Download

Software - EAL580 / EAM580 - PROFINET describing files

  • ZIP
  • 12.27 KB
Download

Brochures / Catalogs - EAM580, EAM360

  • PDF
  • 1.02 MB
Download

Brochures / Catalogs - EAM580, EAM360

  • PDF
  • 1.52 MB
Download

Brochures / Catalogs - EAM580, EAM360

  • PDF
  • 1.52 MB
Download

Certificates / approvals - EAx580 - PROFINET certificate

  • PDF
  • 381.86 KB
Download

Installation and operating instructions - EAM580 - PROFINET

  • PDF
  • 728.22 KB
Download

Data sheet - Data sheet – EAM580-K - PROFINET

  • PDF
  • 989.73 KB
Download

Data sheet - Data sheet – EAM580-K - PROFINET

  • PDF
  • 993.92 KB
Download

Declaration of conformity - EAM580

  • PDF
  • 39.19 KB
Download
