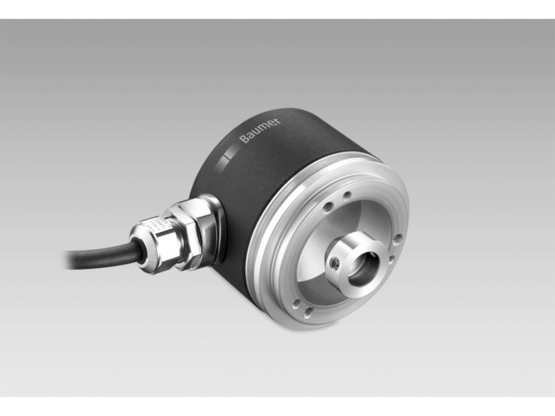

Baumer MAGRES  EAM580R-K - CANopen®/SAE J1939

Baumer MAGRES EAM580R-K - CANopen®/SAE J1939

Absolute encoders

  • Encoder kit single- or multiturn / CANopen®/SAE J1939
  • ISO 13849 compliant firmware
  • E1 compliant design
  • High protection IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion C5-M
  • Wire cross section 0.5 mm²
  • Electronic gear function
Voltage supply: 10...30 VDC
Emitted interference: DIN EN 61000-6-4 CISPR 25:2008 (30...1000 MHz) ISO 7637-2:2004* * Severity level according to ECE R10 (Rev. 4)
Interference immunity: DIN EN 61000-6-2 ISO 11452-2:2004* / -5:2002* ISO 7637-2:2004* ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV) * Severity level according to ECE R10 (Rev. 4)
Output stages: CAN-Bus, LV (3.3 V) compatible ISO 11898
Code sequence: CW: ascending values with clockwise sense of rotation; looking at flange
Sensing method: Magnetic
Absolute accuracy: ±0,15 ° (+20 ±15 °C) ±0,25 ° (-40...+85 °C) (see info working distance)
Number of revolutions: ≤262144 / 18 bit
Steps per revolution: ≤16384 / 14 bit
Profile conformity: CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406
Function: Multiturn Singleturn
Interface: CANopen® SAE J1939
Initializing time: ≤170 ms after power on
Consumption typ.: 20 mA (24 VDC, w/o load)
Operating temperature: -40...+85 °C (see general information)
Relative humidity: 95 %
Resistance: DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 1 ms
Weight approx.: 250 g
Connection: Flange connector M12, 5-pin Cable 2 m
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2
Material: Housing: steel, powder-coated Flange: aluminium
Working distance: 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity
Operating speed: ≤6000 rpm
Protection DIN EN 60529: IP 67
Shaft type: ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)
Size (flange): ø58 mm
Instruction: Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately).
