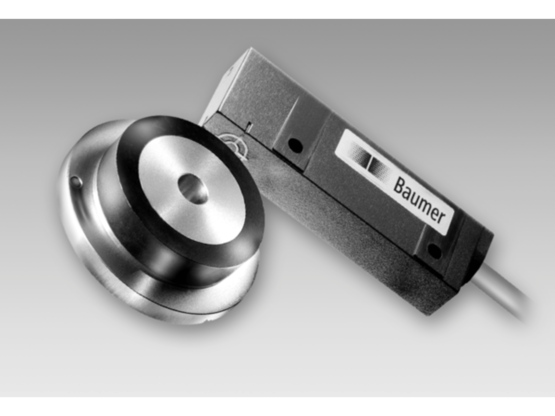

Baumer MDFK 08 - push-pull
Incremental encoders
- Magnetic sensor with magnetic wheel
- Resolution max. 4096 steps
- Output signals A 90° B or A 90° B +N
- Output circuits: push-pull and RS422
- Non-contact, wear-free sensing system
- High resistance to dirt
- Narrow mounting design
| Voltage supply: | 8...30 VDC |
|---|---|
| Jitter: | ≤15 % |
| Voltage drop: | <2 VDC (I=20 mA) |
| System accuracy: | ±0.5° |
| Output frequency: | ≤1,6 MHz (8-fold interpolation) ≤3,2 MHz (16-fold interpolation) |
| Reference signal: | Zero pulse, width 90° |
| Output stages: | Push-pull short-circuit proof |
| Output signals: | A 90° B A 90° B, N |
| Reverse polarity protection: | Yes, to GND |
| Consumption w/o load: | ≤30 mA |
| Switching current max.: | 50 mA |
| Pulses per revolution: | 256 … 1024 |
| Interpolation: | 8‑fold 16‑fold |
| Weight approx.: | 105 g |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 20 g, 10-2000 Hz DIN EN 60068-2-27 Shock 100 g, 6 ms |
| Relative humidity: | 95 % |
| Operating temperature: | -25...+85 °C |
| Material: | Housing: PC |
| Fastening torque: | 0,4 Nm |
| Working distance: | < 0,6 mm |
| Protection DIN EN 60529: | IP 67 |
| Dimensions W x H x L: | 15 x 8.5 x 45.5 mm |
| Shaft type: | ø6...43.5 mm (through hollow shaft) |
| Connection: | Cable 2 m |
