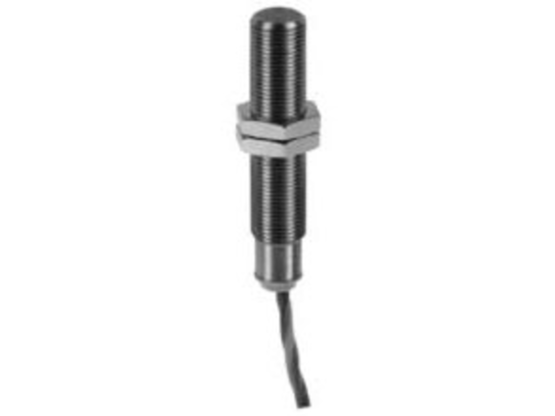

Baumer MHRM 12G2501
Hall sensors
- cable FEP, 2 m
- -40 … 120 °C
| version: | full metal |
|---|---|
| sensor type: | hall sensor |
| working distance max.: | <0,5 mm (module 1), <2,5 mm (module 3) |
| min. gear size: | > module 1 |
| gear width: | > 6 mm |
| gear material: | ferromagnetic |
| dimension: | 12 mm |
|---|---|
| housing length: | 60 mm |
| installation aid: | keyway |
| connection types: | cable FEP, 2 m |
| front of sensor durable against pressure: | 20 bar |
| operating temperature: | -40 … +120 °C |
| protection class (sensing face): | IP 68 |
| housing material: | stainless steel |
| type: | cylindrical threaded |
| reverse polarity protection: | yes, Vs to GND |
| short circuit protection: | yes |
| voltage drop Vd: | < 5 VDC |
| output B: | push-pull |
| output A: | push-pull |
| current consumption max. (no load): | 20 mA |
| voltage supply range +Vs: | 8 … 28 VDC |
| switching frequency range: | 0 … 15 kHz |
| protection class (sensor): | IP 67 |
