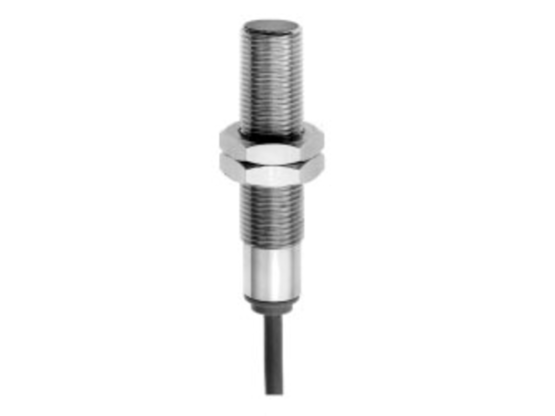

sensor type: hall sensor
working distance max.: <0,7 mm (module 1), <2,4 mm (module 3)
min. gear size: > module 1
gear width: > 6 mm
gear material: ferromagnetic
housing material: brass nickel plated
dimension: 12 mm
housing length: 50 mm
connection types: cable PUR, 2 m
material (sensing face): PBTP
operating temperature: -40 … +85 °C
protection class (sensing face): IP 67
type: cylindrical threaded
reverse polarity protection: yes, Vs to GND
short circuit protection: yes
voltage drop Vd: < 5 VDC
output current: < 30 mA
output B: none
output A: push-pull
current consumption max. (no load): 20 mA
voltage supply range +Vs: 8 … 28 VDC
switching frequency range: 0 … 15 kHz
protection class (sensor): IP 67
