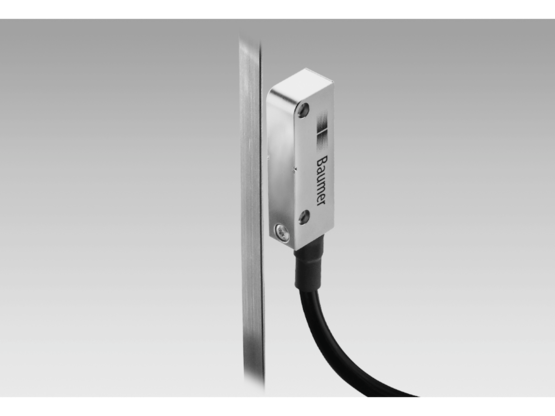

Baumer MIL10
Linear encoders without bearings incremental
- Sensor head with magnetic tape
- Robust magnetic sensing method
- Output signals A 90° B with index signal
- Output circuits: HTL/push-pull and TTL/RS422
- Resolution up to 5 µm (4-times evaluation)
- Non-contact, wear-free sensing system
- High resistance to dirt and vibrations
| Short-circuit proof: | Yes |
|---|---|
| Approval: | CE UL |
| Emitted interference: | DIN EN 61000-6-4 |
| Interference immunity: | DIN EN 61000-6-2 |
| Sensing method: | Magnetic |
| Duty cycle: | 40…60 % |
| System accuracy: | ±(0.02 mm + 0.04 mm x magnetic tape length (m)) |
| Output frequency: | ≤350 kHz |
| Reference signal: | Index signal, width 90° |
| Output stages: | HTL/push-pull TTL/RS422 |
| Output signals: | A+, B+, R+, A-, B-, R- |
| Interpolation: | 20‑fold 50‑fold 100‑fold |
| Resolution: | 5 µm (4-times evaluation) 10 µm (4-times evaluation) µm (4-times evaluation) |
| Initializing time: | ≤50 ms after power on (see general informations) |
| Working distance: | 0,1 … 0,6 mm |
|---|---|
| Material: | Housing: zinc diecast, plated |
| Operating temperature: | -40...+85 °C |
| Relative humidity: | EN 60068-2-78:2010 EN 60068-2-30:2005 93 % condensation permitted |
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 6 ms |
| Weight approx.: | 130 g |
| Movement speed: | <5 m/s (resolution 5 µm) <10 m/s (resolution 10 µm) <25 m/s (resolution 25 µm) |
| Protection DIN EN 60529: | IP 66 IP 67 |
| Dimensions (sensor head): | 10 x 15 x 45.5 mm |
| Recommended cable termination: | On control side each channel pair 120 Ohm |
| Consumption typ.: | 30 mA (w/o load) |
| Voltage supply: | 5 VDC ±5 % |
| Consumption typ.: | 20 mA (w/o load) |
| Reverse polarity protection: | Yes |
| Voltage supply: | 10...30 VDC |
| Connection: | Cable 2 m Cable 0.3 m with connector M12 |
