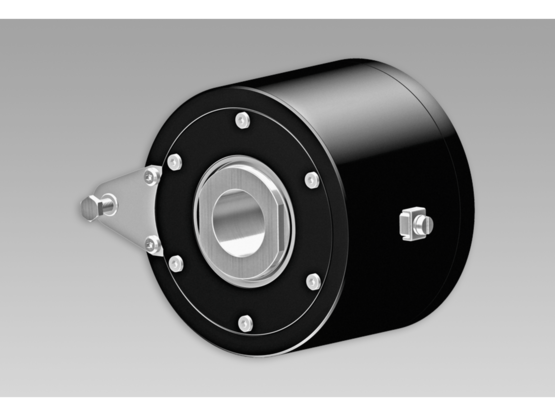

Baumer Motor earthing unit ATEX/IECEx - EExME 12 C
Motor earthing units
- Ex-approved by ATEX II 2 G Ex db IIC T4 Gb (gas)
- IEC Ex db IIC T4 Gb (gas)
- EG design test certifcate
TÜV NORD CERT No. TÜV 02 ATEX 1920 X IECEx TUN 11.0036X - Leakage of parasetical shaft currents
- Hollow shaft ø20...42 mm
- Ceramic bearings for higher speeds
| Current load: | ≤1 A ≤12 A (short-term) |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 10 g, 50-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Material: | Housing: aluminium |
| Shaft type: | ø20...42 mm (through hollow shaft) |
| Protection DIN EN 60529: | IP 56 |
| Weight approx.: | 3,5 kg |
| Explosion protection: | II 2 G Ex db IIC T4 Gb Ex db IIC T4 Gb |
| Operating torque: | ≤15 Ncm |
| Rotor moment of inertia: | 3,7 kgcm² |
| Admitted shaft load: | ≤150 N axial ≤200 N radial |
| Ambient temperature: | -55...+60 °C |
| Operating speed: | ≤9500 rpm |
| Approval: | CE ATEX IECEx |
