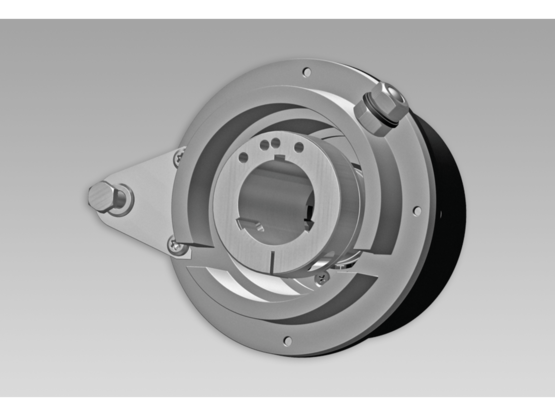

Baumer Motor earthing unit - ME 11
Motor earthing units
- Leakage of parasetical shaft currents
- Blind hollow shaft ø16...30 mm
| Current load: | ≤1 A ≤12 A (short-term) |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 10 g, 50-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Material: | Housing: aluminium |
| Shaft type: | ø16...30 mm (through hollow shaft) |
| Protection DIN EN 60529: | IP 55 |
| Weight approx.: | 1 kg |
| Operating torque: | ≤15 Ncm |
| Rotor moment of inertia: | 0,72 kgcm² (ø16) 0,38 kgcm² (ø30) |
| Admitted shaft load: | ≤150 N axial ≤200 N radial |
| Operating temperature: | -30...+120 °C |
| Operating speed: | ≤8500 rpm |
| Approval: | CE |
