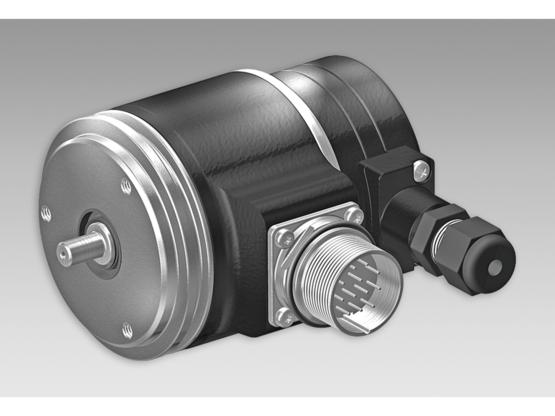

Baumer OG 60 + GT 5
Incremental encoders - combination
- Robust aluminium housing
- Flange connector with metal mating connector
- Synchro flange, solid shaft ø6 mm
- Open circuit voltage 7...10 mV per rpm
| Interference immunity: | EN 61000-6-2 |
|---|---|
| Emitted interference: | EN 61000-6-3 |
| Approval: | CE |
| Flange: | Synchro flange |
|---|---|
| Admitted shaft load: | ≤50 N axial ≤60 N radial |
| Shaft type: | ø6 mm solid shaft |
| Size (flange): | ø58 mm |
| Open-circuit voltage: | 7...10 mV per rpm |
| Armature-circuit time-constant: | <4,5 µs |
| Protection DIN EN 60529: | IP 54 |
| Operating speed: | ≤12000 rpm |
| Operating torque typ.: | 1 Ncm |
| Rotor moment of inertia: | 22 gcm² |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -30...+85 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms |
| Connection: | Flange connector M23, 12-pin Screw terminal connector |
| Performance: | 0.075 W (speed ≥5000 rpm) |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Voltage supply: | 9...26 VDC 5 VDC ±5 % |
| Consumption w/o load: | ≤100 mA |
| Pulses per revolution: | 10 … 10000 |
| Phase shift: | 90 ° ±8° |
| Duty cycle: | 46…54 % |
| Reference signal: | Zero pulse, width 90° |
| Output frequency: | ≤250 kHz |
| Output signals: | K1, K2, K0 + inverted |
| Output stages: | HTL TTL/RS422 |
| Reversal tolerance: | ≤0,1 % |
| Linearity tolerance: | ≤0,15 % |
| Temperature coefficient: | ± 0,005 %/K (open-circuit) |
| Isolation class: | B |
| Calibration tolerance: | ±5 % |
| Weight approx.: | 350 g |
