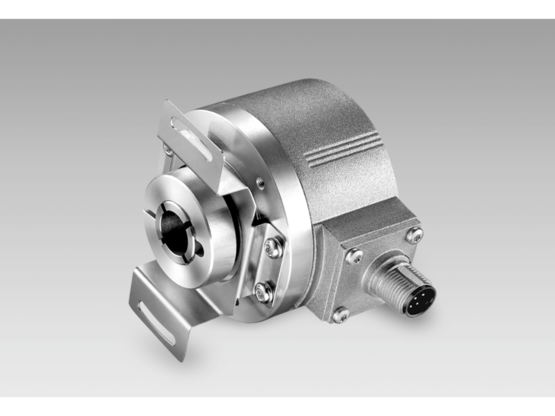

Baumer OptoPulse® EIL580-B

Baumer OptoPulse® EIL580-B

Incremental encoders

  • Size ø58 mm
  • Precise optical sensing
  • Output signal level TTL or HTL
  • Blind hollow shaft, ø8…15 mm
  • Connection axial, radial or tangential
  • Pulses per revolution up to 5000
  • High protection up to IP 67
  • High resistance to shock and vibrations
information
Voltage supply: 5 VDC ±5 % 8...30 VDC 4.75...30 VDC
Approval: UL 508 / CSA 22.2
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Output stages: TTL/RS422 HTL/push-pull
Output signals: A+, B+, R+, A-, B-, R-
Output frequency: ≤300 kHz (TTL) ≤160 kHz (HTL)
Sensing method: Optical
Reference signal: Zero pulse, width 90° ±10 %
Reverse polarity protection: Yes
Short-circuit proof: Yes (HTL) Yes (TTL, max. 1 s and 1 signal)
Consumption w/o load: ≤70 mA
Pulses per revolution: 100 … 5000
Phase shift: 90 ° ±10°
Duty cycle: 40…60 %
Connection: Flange connector M12, 8-pin Flange connector M23, 12-pin Cable
Resistance: DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 250 g, 6 ms
Relative humidity: 90 % non-condensing
Operating temperature: -40...+85 °C
Material: Housing: aluminium die-cast Flange: aluminium
Starting torque: ≤0,02 Nm (+20 °C, IP 65) ≤0,025 Nm (+20 °C, IP 67)
Operating speed: ≤6000 rpm (+20 °C, IP 67) ≤8000 rpm (+20 °C, IP 65)
Protection DIN EN 60529: IP 65 (without shaft seal) IP 67 (with shaft seal)
Shaft type: ø8...15 mm (blind hollow shaft)
Size (flange): ø58 mm
Weight approx.: 300 g
