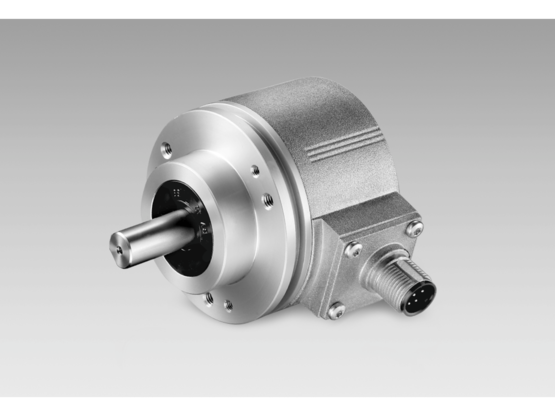

Baumer OptoPulse® EIL580-SC
Incremental encoders
- Size ø58 mm
- Precise optical sensing
- Output signal level TTL or HTL
- Clamping flange
- Connection axial, radial or tangential
- Pulses per revolution up to 5000
- High protection up to IP 67
- High resistance to shock and vibrations
| Voltage supply: | 5 VDC ±5 % 8...30 VDC 4.75...30 VDC |
|---|---|
| Approval: | UL 508 / CSA 22.2 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Output stages: | TTL/RS422 HTL/push-pull |
| Output signals: | A+, B+, R+, A-, B-, R- |
| Output frequency: | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse, width 90° ±10 % |
| Reverse polarity protection: | Yes |
| Short-circuit proof: | Yes (HTL) Yes (TTL, max. 1 s and 1 signal) |
| Consumption w/o load: | ≤70 mA |
| Pulses per revolution: | 100 … 5000 |
| Phase shift: | 90 ° ±10° |
| Duty cycle: | 40…60 % |
| Connection: | Flange connector M12, 8-pin Flange connector M23, 12-pin Cable |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 300 g, 6 ms |
| Relative humidity: | 90 % non-condensing |
| Operating temperature: | -40...+85 °C |
| Material: | Housing: aluminium die-cast Flange: aluminium Solid shaft: stainless steel |
| Starting torque: | ≤0,015 Nm (+20 °C, IP 65) ≤0,02 Nm (+20 °C, IP 67) |
| Operating speed: | ≤6000 rpm (+20 °C, IP 67) ≤12000 rpm (+20 °C, IP 65) |
| Protection DIN EN 60529: | IP 65 (without shaft seal) IP 67 (with shaft seal) |
| Flange: | Clamping flange |
| Admitted shaft load: | ≤40 N axial ≤80 N radial |
| Shaft type: | ø10 x 20 mm, solid shaft with flat ø3/8" x 4/5" (ø9.525 x 20.32 mm), solid shaft with flat |
| Size (flange): | ø58 mm |
| Weight approx.: | 300 g |
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable tangential, IP67 / STEP (EIL580-SC10.7Px.xxxxx.A)
- ZIP
- 983.38 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M12 axial, IP65 / STEP (EIL580-SC10.5Ax.xxxxx.A)
- ZIP
- 1.1 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M12 axial, IP67 / STEP (EIL580-SC10.7Ax.xxxxx.A)
- ZIP
- 1.08 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M12 radial, IP65 / STEP (EIL580-SC10.5Bx.xxxxx.A)
- ZIP
- 1.01 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M12 radial, IP67 / STEP (EIL580-SC10.7Bx.xxxxx.A)
- ZIP
- 1.02 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M23 axial, IP65 / STEP (EIL580-SC10.5Dx.xxxxx.A)
- ZIP
- 415.95 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M23 axial, IP67 / STEP (EIL580-SC10.7Dx.xxxxx.A)
- ZIP
- 407.45 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M23 radial, IP65 / STEP (EIL580-SC10.5Fx.xxxxx.A)
- ZIP
- 407.08 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, connector M23 radial, IP67 / STEP (EIL580-SC10.7Fx.xxxxx.A)
- ZIP
- 402.9 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable tangential, IP65 / STEP (EIL580-SC10.5Px.xxxxx.A)
- ZIP
- 945.35 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable radial, IP67 / STEP (EIL580-SC10.7Rx.xxxxx.A)
- ZIP
- 816.65 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable radial, IP65 / STEP (EIL580-SC10.5Rx.xxxxx.A)
- ZIP
- 825.47 KB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable axial, IP65 / STEP (EIL580-SC10.5Tx.xxxxx.A)
- ZIP
- 1.12 MB
3D CAD - EIL580: Clamping flange (centering collar ø36 mm), solid shaft ø10 mm, cable axial, IP67 / STEP (EIL580-SC10.7Tx.xxxxx.A)
- ZIP
- 927.7 KB
Declaration of conformity - Incremental encoders EIL580-, HS35-, ITD2x-, ITD3-, ITD4x-, ITD6x-, ITD70-, TIL- series and ITD- combination
