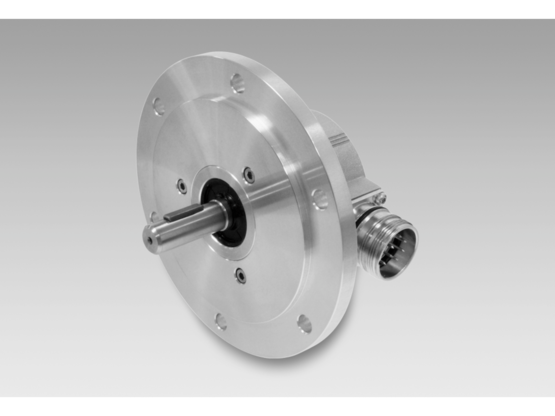

Baumer OptoPulse® EIL580P-S1
Incremental encoders
- Size ø58 mm
- Precise optical sensing (interpolated)
- Output signal level programmable (TTL or HTL)
- EURO flange B10
- Connection axial, radial or tangential
- Pulses per revolution 1...65536, programmable
- High protection up to IP 67
- High resistance to shock and vibrations
| Voltage supply: | 4.75...30 VDC |
|---|---|
| Approval: | UL 508 / CSA 22.2 |
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Programmable parameters: | Output level TTL/HTL Pulse number 1...65536 Zero pulse width 90°/180° Zero pulse position Signal sequence |
| Output stages: | TTL/RS422 HTL/push-pull |
| Output signals: | A+, B+, R+, A-, B-, R- |
| Output frequency: | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Sensing method: | Optical |
| Reference signal: | Zero pulse 90° or 180° |
| Reverse polarity protection: | Yes |
| Short-circuit proof: | Yes |
| Consumption w/o load: | ≤70 mA |
| Initializing time: | ≤30 ms after power on |
| Pulses per revolution: | 1 … 65536 |
| Duty cycle: | 45…55 % typical at 1024, 2048 ppr (further see table Duty cycle) |
| Connection: | Flange connector M12, 8-pin Flange connector M23, 12-pin Cable |
|---|---|
| Resistance: | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 300 g, 6 ms |
| Relative humidity: | 90 % non-condensing |
| Operating temperature: | -40...+100 °C |
| Material: | Housing: aluminium die-cast Flange: aluminium Solid shaft: stainless steel |
| Starting torque: | ≤0,015 Nm (+20 °C, IP 65) ≤0,02 Nm (+20 °C, IP 67) |
| Operating speed: | ≤6000 rpm (+20 °C, IP 67) ≤12000 rpm (+20 °C, IP 65) |
| Protection DIN EN 60529: | IP 65 (without shaft seal) IP 67 (with shaft seal) |
| Admitted shaft load: | ≤40 N axial ≤80 N radial |
| Shaft type: | ø11 x 30 mm solid shaft with woodruff key |
| Size (flange): | ø115 mm |
| Weight approx.: | 485 g |
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M12 radial, IP67 / STEP (EIL580-S1B1.7Bx.xxxxx.A)
- ZIP
- 1.13 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, cable tangential, IP65 / STEP (EIL580-S1B1.5Px.xxxxx.A)
- ZIP
- 670.99 KB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M23 radial, IP65 / STEP (EIL580-S1B1.5Fx.xxxxx.A)
- ZIP
- 1.18 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, cable tangential, IP67 / STEP (EIL580-S1B1.7Px.xxxxx.A)
- ZIP
- 659.87 KB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M23 radial, IP67 / STEP (EIL580-S1B1.7Fx.xxxxx.A)
- ZIP
- 1.17 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M12 axial, IP65 / STEP (EIL580-S1B1.5Ax.xxxxx.A)
- ZIP
- 679.57 KB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M23 axial, IP67 / STEP (EIL580-S1B1.7Dx.xxxxx.A)
- ZIP
- 933.9 KB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M12 axial, IP67 / STEP (EIL580-S1B1.7Ax.xxxxx.A)
- ZIP
- 696.55 KB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M23 axial, IP65 / STEP (EIL580-S1B1.5Dx.xxxxx.A)
- ZIP
- 930.6 KB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, connector M12 radial, IP65 / STEP (EIL580-S1B1.5Bx.xxxxx.A)
- ZIP
- 1.16 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, cable radial, IP67 / STEP (EIL580-S1B1.7Rx.xxxxx.A)
- ZIP
- 1.62 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, cable axial, IP65 / STEP (EIL580-S1B1.5Tx.xxxxx.A)
- ZIP
- 1.06 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, cable radial, IP65 / STEP (EIL580-S1B1.5Rx.xxxxx.A)
- ZIP
- 1.6 MB
3D CAD - EIL580-S1B1: EURO flange B10, solid shaft ø11x30 mm with woodruff key, cable axial, IP67 / STEP (EIL580-S1B1.7Tx.xxxxx.A)
- ZIP
- 1.07 MB
Declaration of conformity - Incremental encoders EIL580-, HS35-, ITD2x-, ITD3-, ITD4x-, ITD6x-, ITD70-, TIL- series and ITD- combination
- 273.87 KB
