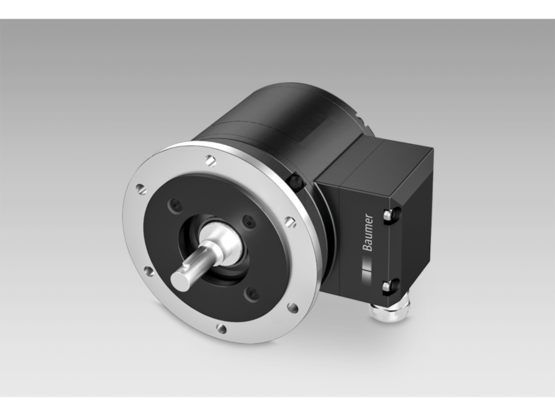

Baumer PMG10P - DeviceNet

Baumer PMG10P - DeviceNet

Absolute encoders

  • Interface DeviceNet
  • Magnetic sensing method
  • Resolution: singleturn 13 bit, multiturn 16 bit
  • Function display via LEDs
  • Multiturn sensing with Energy Harvesting technology, without gear or battery
  • Two-sided bearing system with hybrid bearings
  • Special protection against corrosion C5-M

Voltage supply: 10...30 VDC
Sensing method: Magnetic
Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Programming interface: RS485 (≤600 m)
Programmable parameters: Bus system: see bus features Additional output (number of pulses), switch-off and switch-on speeds
Diagnostic function: Position or parameter error
Status indicator: DUO-LED (bus connecting box) 4 LEDs in device back side
Approval: CE
Additional outputs: Square-wave TTL/HTL,TTL/RS422
Number of revolutions: 65536 / 16 bit
Short-circuit proof: Yes
Consumption w/o load: ≤200 mA
Initializing time: ≤500 ms after power on
Interface: DeviceNet
Function: Multiturn
Transmission rate: 125 … 500 kBaud
Device adress: Rotary switches in bus connecting box
Steps per revolution: 8192 / 13 bit
Rotor moment of inertia: 1 kgcm²
Admitted shaft load: ≤450 N axial ≤650 N radial
Material: Housing: aluminium alloy Shaft: stainless steel
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions C5-M (CX) according to ISO 12944-2
Operating temperature: -40...+85 °C
Relative humidity: 95 % non-condensing
Resistance: IEC 60068-2-6 Vibration 30 g, 10-2000 Hz IEC 60068-2-27 Shock 400 g, 1 ms
Weight approx.: 2,7 kg (depending on version)
Operating torque typ.: 10 Ncm
Range of switching speed: ns (off) = ±2...6000 rpm, factory setting 6000 rpm
Operating speed: ≤6000 rpm
Switching accuracy: ± 2 % (or 1 Digit)
Switching outputs: 1 output (Open collector, solid state relay on request)
Output switching capacity: 30 VDC; ≤100 mA
Switching delay time: ≤20 ms
Size (flange): ø115 mm
Shaft type: ø11 mm solid shaft
Flange: EURO flange B10 Housing foot B3
Protection DIN EN 60529: IP 66/IP 67
Connection: Bus connecting box Terminal box incremental
