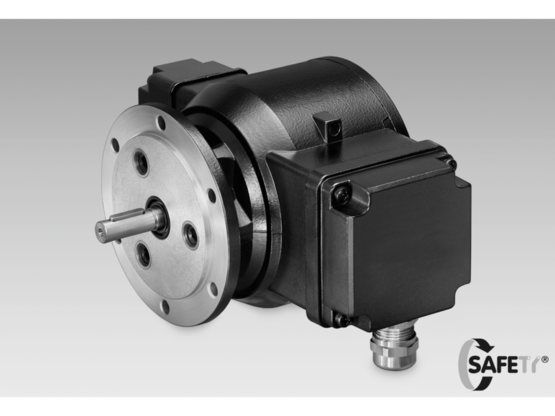

Baumer POG 10 + DSL

Baumer POG 10 + DSL

Incremental encoders - combination

  • Freely programmable on and off switching speed
  • Programming via included software (RS485 interface)
  • TTL or HTL, 512...2500 pulses per revolution
  • EURO flange B10 and/or housing foot B3 / solid shaft ø11 mm
  • DSL.R: 3 outputs speed controlled (independent transistor outputs)
  • DSL.E: 2 outputs speed controlled and 1 control output
Voltage supply: With DSL.R: 15...30 VDC With DSL.E: 9...30 VDC
Consumption w/o load: ≤200 mA
Sensing method: Optical
Material: Housing: aluminium Shaft: stainless steel
Rotor moment of inertia: 290 gcm²
Operating torque: ≤2 Ncm
Range of switching speed (ns): Pulses = 512: ±16...6000 rpm Pulses = 1024: ±8...6000 rpm Pulses = 2048: ±4...3500 rpm Pulses = 2500: ±3...2900 rpm
Speed (n): ≤6000 rpm
Protection DIN EN 60529: IP 66
Operating temperature: -30...+85 °C
Resistance: IEC 60068-2-6 Vibration 20 g, 10...2000 Hz IEC 60068-2-27 Shock 200 g, 6 ms
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2
Explosion protection: II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust)
Connection: Terminal box
Weight approx.: 3,3 kg
Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Flange: EURO flange B10 Housing foot B3
Admitted shaft load: ≤300 N axial ≤450 N radial
Pulses per revolution: 512 … 2500
Phase shift: 90 ° ±20°
Duty cycle: 40…60 %
Reference signal: Zero pulse, width 90°
Output frequency: ≤120 kHz
Output signals: K1, K2, K0 + inverted
Output stages: HTL TTL/RS422
Interface: RS485
Switching accuracy: ± 2 % (or Digit)
Switching outputs: With DSL.R: 3 outputs, speed control With DSL.E: 2 outputs, speed control and 1 control output
Output switching capacity: With DSL.R: 12 VDC; ≤40 mA With DSL.E: 5...230 VAC/VDC; 5...250 mA
Switching delay time: ≤40 ms
Size (flange): ø115 mm
Shaft type: ø11 mm solid shaft
Approval: CE
