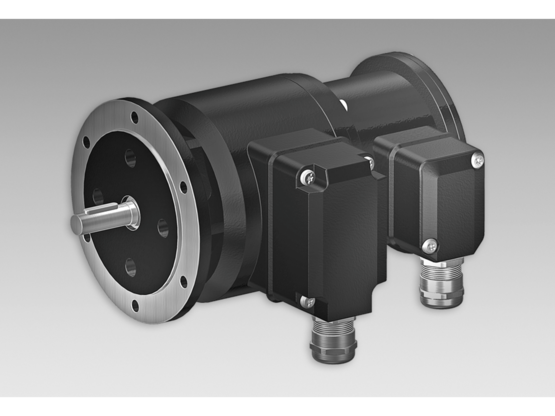

Baumer POG 10 + ESL 93
Incremental encoders - combination
- TTL output driver for cable length up to 550 m
- Electronic speed monitoring
- Circuit breaker with up to three selectable threshold speeds
- EURO flange B10 / solid shaft ø11 mm
- Terminal boxes, turn by 180°
| Voltage supply: | 9...30 VDC; 5 VDC ±5 % |
|---|---|
| Sensing method: | Optical |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Reference signal: | Zero pulse, width 90° |
| Duty cycle: | 40…60 % |
| Phase shift: | 90 ° ±20° |
| Pulses per revolution: | 300 … 5000 |
| Consumption w/o load: | ≤100 mA |
| Range of switching speed (ns): | 3x 200...5000 rpm |
|---|---|
| Operating torque typ.: | 3 Ncm |
| Rotor moment of inertia: | 220 gcm² |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -20...+85 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 100 g, 11 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Connection: | 2x terminal box 3x terminal box (with option M) |
| Weight approx.: | 2,7 kg 2,9 kg (with option M) |
| Interference immunity: | EN 61000-6-2 |
| Emitted interference: | EN 61000-6-3 |
| Operating speed: | ≤5000 rpm |
| Protection DIN EN 60529: | IP 66 |
| Voltage supply: | 12 VDC ±10 % |
| Consumption w/o load: | ≤5 mA |
| Switching accuracy: | ± 4 % (≤1500 rpm) ± 2 % (>1500 rpm) |
| Switching hysteresis: | = 30 % of switching speed |
| Switching outputs: | 3 outputs, speed control |
| Current each output: | 40 mA |
| Switching delay time: | ≤40 ms |
| Size (flange): | ø115 mm |
| Shaft type: | ø11 mm solid shaft |
| Admitted shaft load: | ≤300 N axial ≤450 N radial |
| Flange: | EURO flange B10 |
| Approval: | CE |
