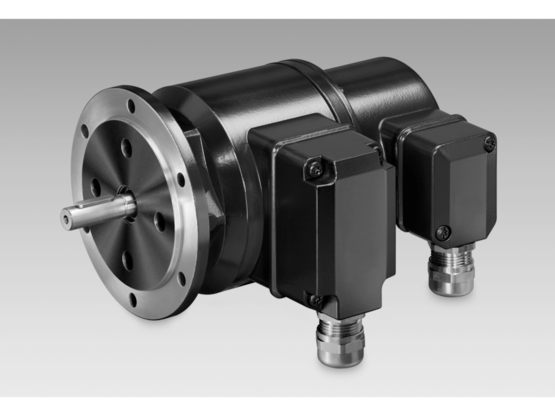

Baumer POG 10 + FSL

Baumer POG 10 + FSL

Incremental encoders - combination

  • TTL output driver for cable length up to 550 m
  • Mechanical speed monitoring based on centrifugal force
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Approval: CE
Speed (n): ≤1,25 · ns
Protection DIN EN 60529: IP 66
Flange: EURO flange B10
Admitted shaft load: ≤300 N axial ≤450 N radial
Shaft type: ø11 mm solid shaft
Size (flange): ø115 mm
Range of switching speed (ns): 850...4500 rpm (Δn = 2 rpm/s)
Operating torque typ.: 3 Ncm
Rotor moment of inertia: 220 gcm²
Material: Housing: aluminium die-cast Shaft: stainless steel
Operating temperature: -40...+100 °C -25...+100 °C (>3072 pulses) -50...+100 °C (optional)
Resistance: IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 100 g, 6 ms
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2
Connection: 2x terminal box 3x terminal box (with option M)
Minimum switching current: 50 mA
Output switching capacity: ≤6 A / 230 VAC ≤1 A / 125 VDC
Voltage supply: 9...30 VDC 5 VDC ±5 %
Consumption w/o load: ≤100 mA
Pulses per revolution: 300 … 5000
Phase shift: 90 ° ±20°
Duty cycle: 40…60 %
Reference signal: Zero pulse, width 90°
Output frequency: ≤120 kHz ≤300 kHz (on request)
Output signals: K1, K2, K0 + inverted Error output (option EMS)
Output stages: HTL-P (power linedriver) TTL/RS422
Sensing method: Optical
Switching accuracy: ± 4 % (Δn = 2 rpm/s); 20 % (Δn = 1500 rpm/s)
Switching deviation: ≤3 % (cw-ccw rotation)
Switching hysteresis: 40 % of switching speed
Switching outputs: 1 output, speed control
Weight approx.: 2,3 kg 2,5 kg (with option M)
