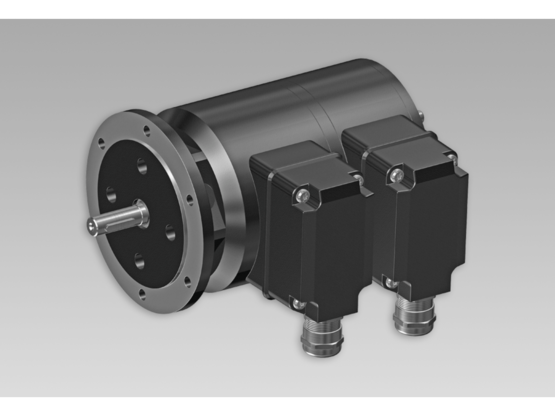

Baumer POG 10 G
Incremental encoders - combination
- Twin encoder featuring two separate systems
- TTL output driver for cable length up to 550 m
- High resistance to shock and vibrations
- EURO flange B10 / solid shaft ø11 mm
- Large terminal boxes, turn by 180°
| Voltage supply: | 9...30 VDC 5 VDC ±5 % |
|---|---|
| Approval: | CE UL approval / E217823 |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Sensing method: | Optical |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Reference signal: | Zero pulse, width 90° |
| Duty cycle: | 40…60 % |
| Phase shift: | 90 ° ±20° |
| Pulses per revolution: | 300 … 5000 |
| Consumption w/o load: | ≤100 mA |
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
|---|---|
| Operating temperature: | -40...+100 °C -25...+100 °C (>3072 pulses) |
| Resistance: | IEC 60068-2-6 Vibration 20 g, 10...2000 Hz IEC 60068-2-27 Shock 200 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) |
| Connection: | 2x terminal box 3x terminal box (with option M) |
| Rotor moment of inertia: | 212 gcm² |
| Operating torque typ.: | 2 Ncm |
| Operating speed: | ≤12000 rpm (mechanical) |
| Protection DIN EN 60529: | IP 66 |
| Flange: | EURO flange B10 |
| Admitted shaft load: | ≤300 N axial ≤450 N radial |
| Shaft type: | ø11 mm solid shaft |
| Size (flange): | ø115 mm |
| Weight approx.: | 2,5 kg 2,7 kg (with option M) |
Installation and operating instructions - POG 10 / POG 10 G with ITT Cannon plug connector
- 2.48 MB
Installation and operating instructions - POG 10 / POG 10 G - B10, B10/B14, B5n and B5n/B14
- 3.28 MB
Installation and operating instructions - POG 10 / POG 10 G with Harting connector
- 2.7 MB
