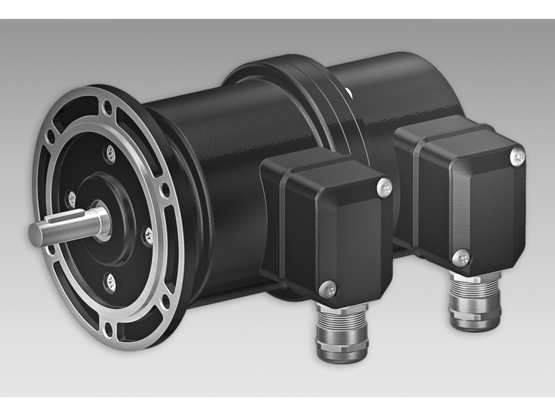

Baumer POG 86 + FSL
Incremental encoders - combination
- Mechanical speed monitoring based on centrifugal force
- Robust, compact housing
- Two bearings with large distance, one at each end
- High shaft load up to 350 N
- TTL output driver for cable length up to 550 m
- Terminal boxes, turn by 180°
| Interference immunity: | EN 61000-6-2 |
|---|---|
| Emitted interference: | EN 61000-6-3 |
| Approval: | CE |
| Speed (n): | ≤1,25 · ns |
|---|---|
| Protection DIN EN 60529: | IP 56 |
| Flange: | EURO flange B10 |
| Admitted shaft load: | ≤250 N axial ≤350 N radial |
| Shaft type: | ø11 mm solid shaft |
| Size (flange): | ø115 mm |
| Range of switching speed (ns): | 850...4500 rpm (Δn = 2 rpm/s) |
| Operating torque typ.: | 3 Ncm |
| Rotor moment of inertia: | 220 gcm² |
| Material: | Housing: aluminium, coated Shaft: stainless steel |
| Operating temperature: | -40...+100 °C -25...+100 °C (>3072 pulses) |
| Resistance: | IEC 60068-2-6 Vibration 5 g, 10...2000 Hz IEC 60068-2-27 Shock 150 g, 1 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Connection: | 2x terminal box |
| Minimum switching current: | 50 mA |
| Output switching capacity: | ≤6 A / 230 VAC ≤1 A / 125 VDC |
| Voltage supply: | 9...30 VDC 5 VDC ±5 % |
| Consumption w/o load: | ≤100 mA |
| Pulses per revolution: | 500 … 5000 |
| Phase shift: | 90 ° ±20° |
| Duty cycle: | 45…55 % 40…60 % (>3072 pulses) |
| Reference signal: | Zero pulse, width 90° |
| Output frequency: | ≤120 kHz ≤300 kHz (on request) |
| Output signals: | K1, K2, K0 + inverted Error output (option EMS) |
| Output stages: | HTL-P (power linedriver) TTL/RS422 |
| Sensing method: | Optical |
| Switching accuracy: | ± 4 % (Δn = 2 rpm/s); 20 % (Δn = 1500 rpm/s) |
| Switching deviation: | ≤3 % (cw-ccw rotation) |
| Switching hysteresis: | 40 % of switching speed |
| Switching outputs: | 1 output, speed control |
| Weight approx.: | 1,9 kg |
