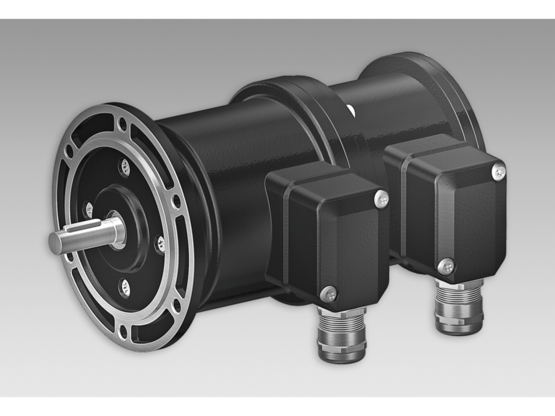

Baumer POG 9 + ESL 90

Baumer POG 9 + ESL 90

Incremental encoders - combination

  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Voltage supply: 9...30 VDC; 5 VDC ±5 %
Sensing method: Optical
Output stages: HTL-P (power linedriver) TTL/RS422
Output signals: K1, K2, K0 + inverted Error output (option EMS)
Output frequency: ≤120 kHz ≤300 kHz (on request)
Reference signal: Zero pulse, width 90°
Duty cycle: 40…60 %
Phase shift: 90 ° ±20°
Pulses per revolution: 300 … 5000
Consumption w/o load: ≤100 mA
Operating torque typ.: 3 Ncm
Rotor moment of inertia: 220 gcm²
Material: Housing: aluminium die-cast Shaft: stainless steel
Operating temperature: -20...+85 °C
Resistance: IEC 60068-2-6 Vibration 5 g, 10...2000 Hz IEC 60068-2-27 Shock 150 g, 1 ms
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2
Connection: Terminal box
Weight approx.: 2 kg
Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Range of switching speed (ns): 650...6000 rpm
Speed (n): ≤6000 rpm
Protection DIN EN 60529: IP 56
Switching accuracy: ± 4 % (≤1500 rpm) ± 2 % (>1500 rpm)
Switching hysteresis: = 30 % of switching speed
Switching outputs: 1 output, speed control
Output switching capacity: ≤6 A / 250 VAC; ≤1 A / 48 VDC
Minimum switching current: 100 mA
Switching delay time: ≤40 ms
Size (flange): ø115 mm
Shaft type: ø11 mm solid shaft
Admitted shaft load: ≤250 N axial ≤350 N radial
Flange: EURO flange B10
Approval: CE
