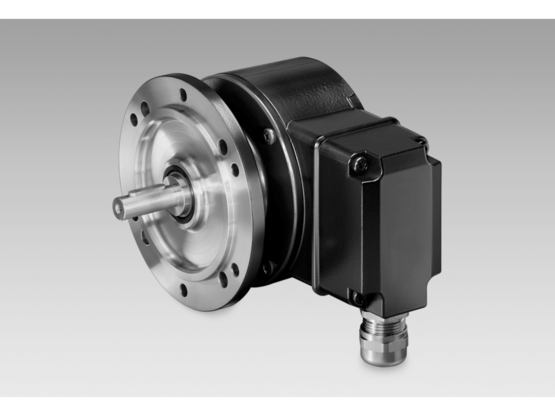

Baumer POGS 90
Sine encoders
- Solid shaft ø11 mm
- Up to 5000 sinewaves cycles per turn
- Low harmonic content (patented LowHarmonics technology)
- SinCos output-signals 1 Vpp
- Large terminal box, turn by 180°
- EURO flange B10
- Compact, robust die-cast housing
| Voltage supply: | 5 VDC ±10 % 9...30 VDC |
|---|---|
| Approval: | CE UL approval / E256710 |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Bandwidth: | 250 kHz (-3 dB) |
| DC offset: | ≤20 mV |
| Harmonics typ.: | -50 dB |
| Difference of SinCos amplitude: | ≤20 mV |
| Output stages: | SinCos 1 Vpp |
| Consumption w/o load: | ≤90 mA |
| Sinewave cycles per revolution: | 720 … 5000 |
| Phase shift: | 90 ° |
| Reference signal: | Zero pulse, width 90° |
| Sensing method: | Optical |
| Output signals: | K1, K2, K0 + inverted |
| Material: | Housing: aluminium die-cast alloy and stainless steel Shaft: stainless steel |
|---|---|
| Operating temperature: | -20...+85 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 100 g, 11 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 3 G Ex nA IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) |
| Connection: | Terminal box |
| Rotor moment of inertia: | 320 gcm² |
| Operating torque typ.: | 2 Ncm |
| Operating speed: | ≤10000 rpm (mechanical) |
| Protection DIN EN 60529: | IP 66 |
| Flange: | EURO flange B10 |
| Admitted shaft load: | ≤250 N axial ≤350 N radial |
| Shaft type: | ø11 mm solid shaft |
| Size (flange): | ø115 mm |
| Weight approx.: | 1,5 kg |
