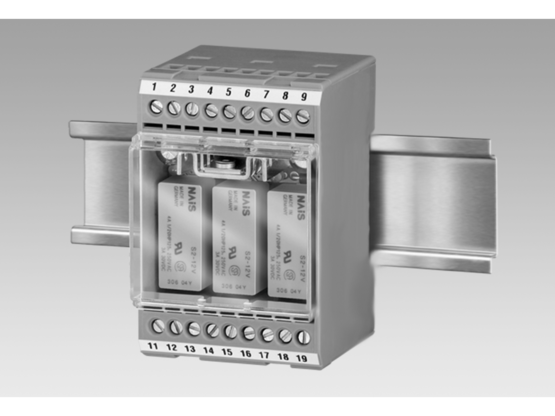

Baumer Relay modul ES 93 R
Signal Processing
- Switch relay box for switching high voltages and currents for the electrical speed switch ES(L) 93
- Triggering is carried out by the transistor outputs of the ES(L) 93
- The ES 93 R also conditions an externally supplied AC or DC low voltage
| Dimensions W x H x L: | 50 x 75 x 55 mm |
|---|---|
| Voltage supply: | 15...26 VDC |
| Cable length: | <200 m (1 mm² shielded) |
| Operating temperature: | -20...+50 °C |
| Connection: | Connecting terminal |
| Weight approx.: | 130 g |
| Protection DIN EN 60529: | IP 20 |
| Material: | Housing: Polycarbonate |
| Approval: | CE |
