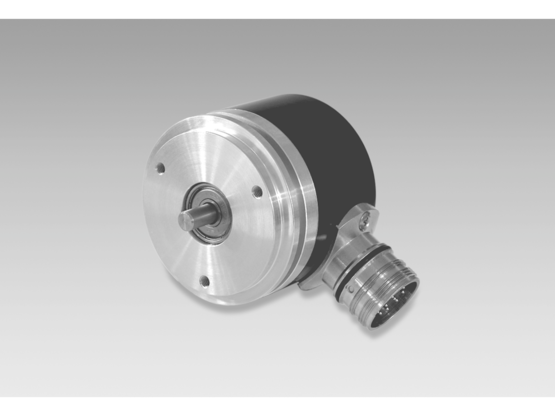

Baumer RTD 1 B14 Y 1

Baumer RTD 1 B14 Y 1

Resolvers

  • Robust resolver with solid shaft ø6 mm
  • Rotation speed max. 10000 rpm
  • Centering alignment ø50 mm
  • Mounting hole circle ø68 mm
  • Wide operating temperature range
  • Flange connector radial
Number of pole pairs: 1 = 2 poles
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Electrical error max.: 10 Angular minutes
Phase shift: 0° ±10°
Transformation ratio: 0.5 ±5 %
Input current Ii max.: ≤65 mA
Input frequency: ≤10 kHz
Input voltage Ui: 7 Vrms
Weight approx.: 450 g
Resistance: DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms
Operating temperature: -20...+100 °C
Material: Housing: aluminium, black, powder-coated Shaft: stainless steel
Admitted shaft load: ≤20 N axial ≤40 N radial
Starting torque: ≤0,01 Nm (+20 °C)
Operating speed: ≤10000 rpm
Protection DIN EN 60529: IP 65
Shaft type: ø6 mm solid shaft
Size (flange): ø58 mm
Connection: Connector M23 type 2, 12-pin

Data sheet - RTD 1 B14 Y 1

  • PDF
  • 315.75 KB
Download

Data sheet - RTD 1 B14 Y 1

  • PDF
  • 309.45 KB
Download

Data sheet - RTD 1 B14 Y 1

  • PDF
  • 322.61 KB
Download

Declaration of conformity - Resolvers RTD 1 A 4..., RTD 1 B14 ..., RTD 4 A 4 ..., RTD 4 + ITD 27 A 4...

  • PDF
  • 226.33 KB
Download
