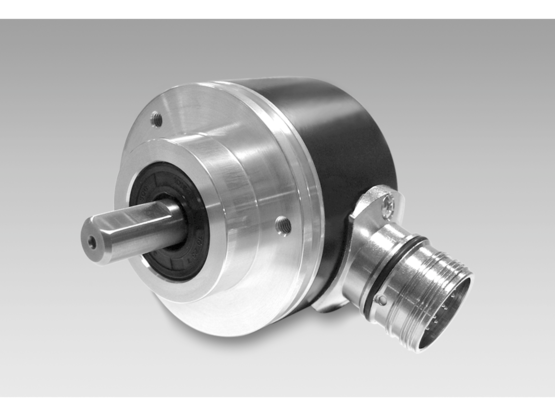

Baumer RTD 1 B14 Y 3

Baumer RTD 1 B14 Y 3

Resolvers

  • Robust resolver with solid shaft ø10 mm
  • Rotation speed max. 5000 rpm
  • Centering alignment ø36 mm, mounting hole circle ø48 mm
  • Wide operating temperature range
  • High protection IP 67 at the shaft input
  • Flange connector radial
Number of pole pairs: 1 = 2 poles
Emitted interference: DIN EN 61000-6-3
Interference immunity: DIN EN 61000-6-2
Electrical error max.: 10 Angular minutes
Phase shift: 0° ±10°
Transformation ratio: 0.5 ±5 %
Input current Ii max.: ≤65 mA
Input frequency: ≤10 kHz
Input voltage Ui: 7 Vrms
Weight approx.: 310 g
Resistance: DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms
Operating temperature: -40...+100 °C
Material: Housing: aluminium, black, powder-coated Shaft: stainless steel
Admitted shaft load: ≤40 N axial ≤60 N radial
Starting torque: ≤0,025 Nm (+20 °C)
Operating speed: ≤5000 rpm
Protection DIN EN 60529: IP 65 (IP 67 at shaft input)
Shaft type: ø10 mm solid shaft (clamping flange)
Size (flange): ø58 mm
Connection: Connector M23 type 2, 12-pin

Data sheet - Data sheet – RTD 1 B14 Y 3

  • PDF
  • 849.95 KB
Download

Data sheet - Data sheet – RTD 1 B14 Y 3

  • PDF
  • 874.32 KB
Download

Data sheet - Data sheet – RTD 1 B14 Y 3

  • PDF
  • 838.03 KB
Download

Declaration of conformity - Resolvers RTD 1 A 4..., RTD 1 B14 ..., RTD 4 A 4 ..., RTD 4 + ITD 27 A 4...

  • PDF
  • 226.33 KB
Download
