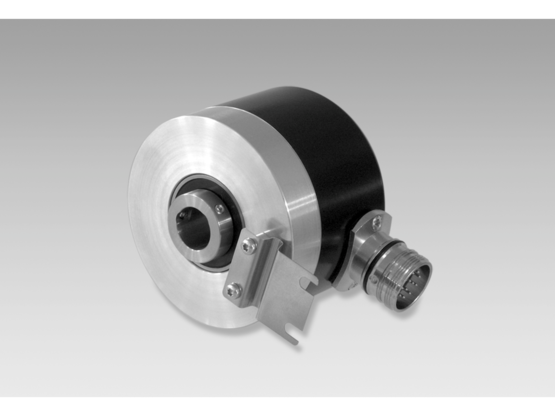

Baumer RTD 4 A 4 Y 2
Resolvers
- Robust resolver with blind hollow shaft ø10...16 mm
- Rotation speed max. 8000 rpm
- Very high resistance to shock and vibrations
- Wide operating temperature range
| Number of pole pairs: | 1 = 2 poles |
|---|---|
| Emitted interference: | DIN EN 61000-6-3 |
| Interference immunity: | DIN EN 61000-6-2 |
| Electrical error max.: | 10 Angular minutes |
| Phase shift: | 0° ±10° |
| Transformation ratio: | 0.5 ±5 % |
| Input current Ii max.: | ≤65 mA |
| Input frequency: | ≤10 kHz |
| Input voltage Ui: | 7 Vrms |
| Motor shaft tolerance: | ±0,25 mm axial ±0,1 mm radial |
|---|---|
| Connection: | Connector M23 type 2, 12-pin |
| Weight approx.: | 670 g |
| Resistance: | DIN EN 60068-2-6 Vibration 10 g, 55-2000 Hz DIN EN 60068-2-27 Shock 100 g, 11 ms |
| Operating temperature: | -40...+100 °C |
| Material: | Housing: aluminium, black, powder-coated Shaft: stainless steel |
| Starting torque: | ≤0,025 Nm (+20 °C) |
| Operating speed: | ≤8000 rpm (≤+80 °C) ≤4000 rpm (≤+100 °C) |
| Protection DIN EN 60529: | IP 65 |
| Shaft type: | ø10...16 mm (blind hollow shaft) |
| Size (flange): | ø80 mm |
| Mounting kit: | 050 |
