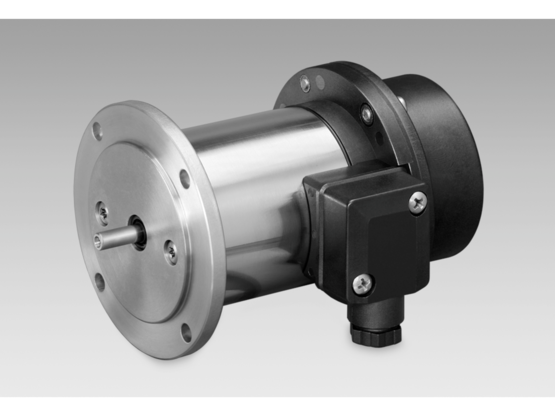

Baumer TDP 0,09, TDPZ 0,09

Baumer TDP 0,09, TDPZ 0,09

Tachogenerators

  • Low response time
  • Open circuit voltage 10...60 mV per rpm
  • Redundant output (TDPZ)
  • Solid shaft ø6 mm with flange
  • Very high resistance to shock
  • High signal quality due to patented LongLife technology
  • Robust design

Reversal tolerance: ≤0,1 %
Approval: CE
Emitted interference: EN 61000-6-3
Interference immunity: EN 61000-6-2
Open-circuit voltage: TDP: 10...60 mV per rpm TDPZ: 10...40 mV per rpm
Armature-circuit time-constant: <25 µs (TDP) <8 µs (TDPZ)
Performance: TDP: 1.2 W (speed ≥3000 rpm) TDPZ: 2x 0,3 W (speed ≥3000 rpm)
Climatic test: Humid heat, constant (IEC 60068-2-3, Ca)
Calibration tolerance: ±3 %
Isolation class: B
Temperature coefficient: ± 0,05 %/K (open-circuit)
Linearity tolerance: ≤0,15 %
Material: Housing: stainless steel / plastic Shaft: stainless steel
Operating temperature: -30...+130 °C
Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 300 g, 1 ms
Weight approx.: 1,1 kg (TDP) kg (TDPZ)
Admitted shaft load: ≤40 N axial ≤60 N radial
Rotor moment of inertia: 0,25 kgcm² (TDP) 0,29 kgcm² (TDPZ)
Torque: 1,5 Ncm
Operating speed: ≤10000 rpm (TDP) ≤9000 rpm (TDPZ)
Protection DIN EN 60529: IP 56
Shaft type: ø6 mm solid shaft
Size (flange): ø85 mm
Connection: Terminal box

Data sheet - TDP 0,09, TDPZ 0,09

  • PDF
  • 405.37 KB
Download

Data sheet - TDP 0,09, TDPZ 0,09

  • PDF
  • 418.01 KB
Download

Data sheet - TDP 0,09, TDPZ 0,09

  • PDF
  • 400.12 KB
Download

Declarations of conformity - Tachogenerators

  • PDF
  • 256.05 KB
Download

Assembly instructions - TDP 0,09, TDPZ 0,09

  • PDF
  • 2.49 MB
Download
