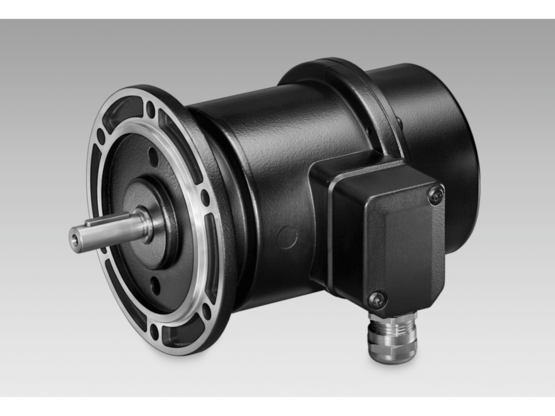

Baumer TDP 0,2, TDPZ 0,2
Tachogenerators
- Low response time
- Open circuit voltage 10…150 mV per rpm
- Redundant output (TDPZ)
- EURO flange B10 or housing foot B3
- Very high resistance to shock
- High signal quality due to patented LongLife technology
- Recognition of sense of rotation possible via control
| Reversal tolerance: | ≤0,1 % |
|---|---|
| Approval: | CE |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Open-circuit voltage: | TDP: 10...150 mV per rpm TDPZ: 20...100 mV per rpm |
| Armature-circuit time-constant: | <75 µs (TDP) <40 µs (TDPZ) |
| Performance: | TDP: 12 W (speed ≥3000 rpm) TDPZ: 2x 3 W (speed ≥3000 rpm) |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Calibration tolerance: | ±1 % |
| Isolation class: | B |
| Temperature coefficient: | ± 0,05 %/K (open-circuit) |
| Linearity tolerance: | ≤0,15 % |
| Admitted shaft load: | ≤60 N axial ≤80 N radial |
|---|---|
| Material: | Housing: aluminium die-cast Shaft: stainless steel |
| Operating temperature: | -30...+130 °C |
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10...2000 Hz IEC 60068-2-27 Shock 300 g, 1 ms |
| Weight approx.: | 2,4 kg (TDP) 2,9 kg (TDPZ) |
| Rotor moment of inertia: | 1,1 kgcm² (TDP) 1,2 kgcm² (TDPZ) |
| Torque: | 1,5 Ncm |
| Operating speed: | ≤10000 rpm |
| Protection DIN EN 60529: | IP 55 IP 56 (option) |
| Flange: | EURO flange B10 Housing foot B3 |
| Shaft type: | ø11 mm solid shaft ø7 mm solid shaft (optional) ø14 mm solid shaft (optional) |
| Size (flange): | ø115 mm |
| Connection: | Terminal box |
