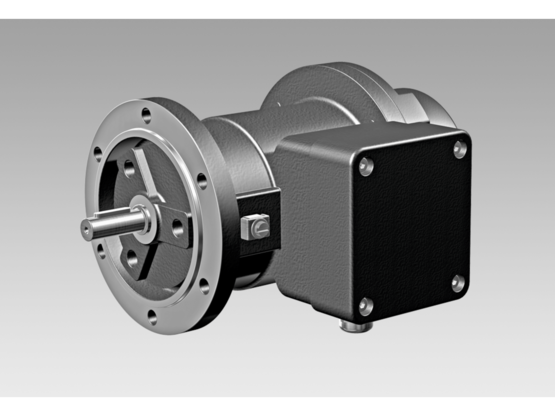

Baumer TG 74 d
Tachogenerators
- Tachogenerator / ATEX
- Ex-approved by ATEX II 2 G Ex db eb IIC T6 Gb
- Low response time
- Solid shaft ø14 mm
- EURO flange B10
- High signal quality due to patented LongLife technology
- Recognition of sense of rotation
| Reversal tolerance: | ≤0,1 % |
|---|---|
| Approval: | CE ATEX |
| Emitted interference: | EN 61000-6-3 |
| Interference immunity: | EN 61000-6-2 |
| Voltage: | 20…150 mV per rpm |
| Armature-circuit time-constant: | <150 µs |
| Performance: | 12 W (speed ≥5000 rpm) |
| Climatic test: | Humid heat, constant (IEC 60068-2-3, Ca) |
| Calibration tolerance: | ±5 % |
| Isolation class: | B |
| Temperature coefficient: | ± 0,06 %/K (open-circuit) |
| Linearity tolerance: | ≤0,15 % |
| Ambient temperature: | -20...+55 °C |
|---|---|
| Resistance: | IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 300 g, 6 ms |
| Corrosion protection: | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2 |
| Explosion protection: | II 2 G Ex db eb IIC T6 Gb (gas) |
| Weight approx.: | 3,8 kg |
| Material: | Aluminium die cast alloy Shaft: stainless steel |
| Admitted shaft load: | ≤60 N axial ≤80 N radial |
| Rotor moment of inertia: | 1,15 kgcm² |
| Torque: | 1,5 Ncm |
| Protection DIN EN 60529: | IP 54 (T6) |
| Shaft type: | ø14 mm solid shaft |
| Size (flange): | ø115 mm |
| Connection: | Screw terminal connector |
