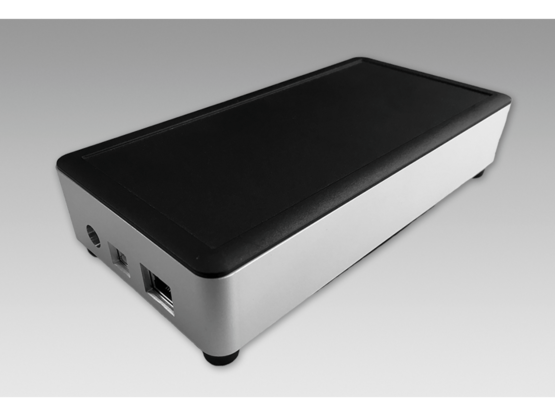

Baumer Z-PA.SDL.1 - WLAN-Adapter

Baumer Z-PA.SDL.1 - WLAN-Adapter

Programming tools

  • Programming unit for HMG10P/PMG10P series
  • Parametrization of SSI absolute signal, incremental output and speed switch (depending on encoder version)
  • Monitoring of current position, speed und temperature
  • Connection over Ethernet or wireless over WLAN
  • Simple and intuitive use via webbrowser on pc, tablet or smartphone
  • Fast parameter download
Operating system: Accessible and controllable by webbrowser: Internet-Explorer 11, Firefox, Safari-6 or higher.
Connection: Connector D-SUB, female, 15-pin WIFI - IEEE 802.11 network, WPA2 security USB 1.0 / type B (female) EtherNet RJ45 socket
Weight approx.: 360 g
Power supply unit: Input: 90-260 VAC Output: 24 V/0,75 A Interchangeable plug-Type A, C, G and I
